Automatic Vacuum Loading Series

Feeding & Conveying System Equipment

Model TSA Series

Automatic Vacuum Loading Series

Open-type detachable autoloader for automatic plastic material conveying, with conveying capacity up to 2,000 kg/h, loading distance up to 10 m, and flexible multi-machine configurations.

2,000 kg/h Max. Conveying Capacity High-capacity automatic material conveying for demanding production lines.
10 m Max. Loading Distance Supports long-distance material transfer between storage and processing equipment.
2 / 4 / 6 Multi-Point Configuration Flexible configurations support multiple receivers and processing machines.
Request a Quote View Product Overview
Max. Conveying Capacity
2,000 kg/h
Max. Loading Distance
10 m
Motor Power
1.1–7.5 kW
Conveying Tube I.D.
38–51 mm

Core Advantages

Efficient Material Conveying for Flexible Production

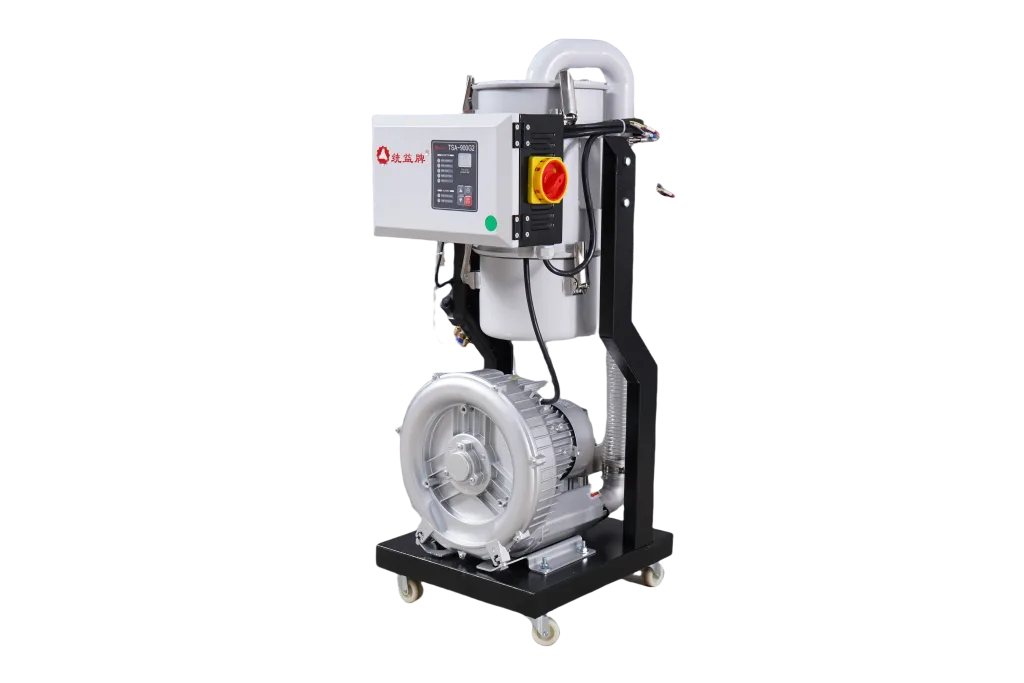

The TSA Series Detachable Autoloader is designed for automatic conveying of plastic raw materials to injection molding machines, extruders, hopper dryers, and other processing equipment. Using vacuum negative-pressure conveying, the system automatically transfers material from the storage tank to the receiving hopper when material demand is detected. Conveying capacity can reach up to 2,000 kg/h, with a maximum loading distance of up to 10 m. The open-type separated design allows flexible installation and convenient operation. High-power models from approximately 1.5 HP to 10 HP are available for applications requiring larger conveying capacity. Multi-receiver configurations can also support multiple machines or material conveying points, helping reduce equipment and installation costs.

Automatic Material Supply

Automatic conveying reduces manual material handling and helps maintain continuous material supply to processing equipment.

Flexible Installation

The separated open-type design allows the main unit and material receiver to be installed according to production layout requirements.

Multi-Machine Capability

Flexible multi-receiver configurations allow one conveying system to serve multiple machines or material points.

Lower System Cost

Shared conveying configurations can reduce duplicate equipment and installation requirements across multiple machines.

Key Features

Designed for Reliable Automatic Material Conveying

  • Vacuum Conveying Negative-pressure conveying automatically transfers plastic material from the storage tank to the receiving hopper.

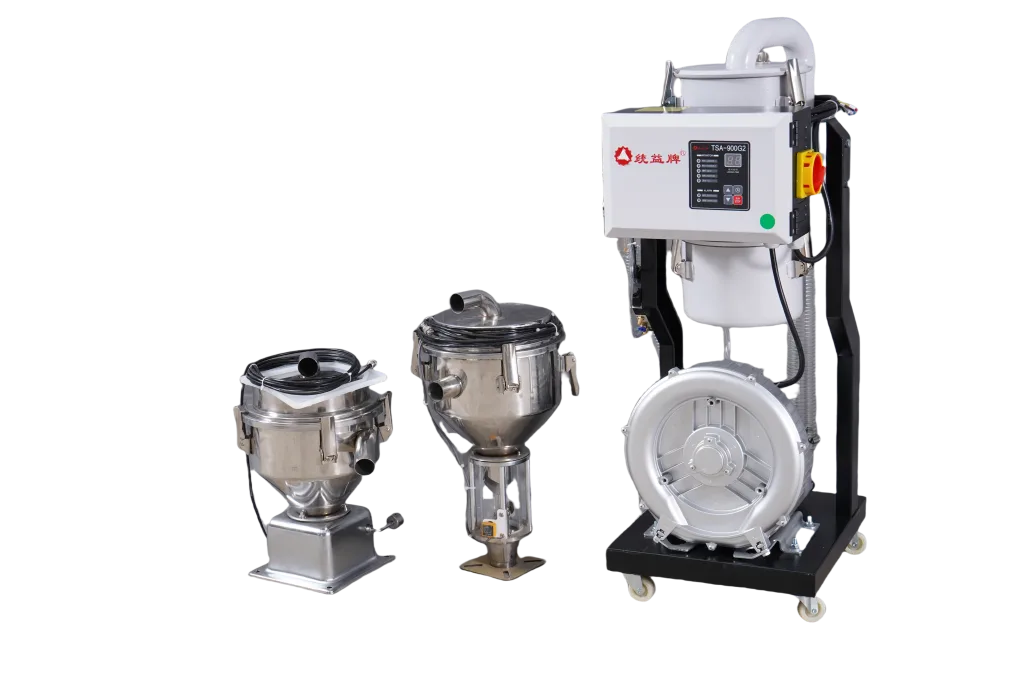

  • Detachable Open-Type Design The separated main unit and hopper receiver provide greater installation flexibility and easier system arrangement.
  • High-Power Blower Options Multiple motor capacities are available to meet different conveying distances and material throughput requirements.
  • Automatic Material Detection Material level detection automatically starts the conveying cycle when additional material is required.
  • Flexible Receiver Configurations Different hopper receiver arrangements support single-machine and multi-machine conveying applications.
  • Convenient Control Simple controls and remote operating capability provide convenient daily operation and system management.
Automatic Vacuum Loading Series

Technical Specifications

Technical Specifications

Specification TSA-800G TSA-800GE TSA-800G2 TSA-800G2E TSA-800G3 TSA-800G3E TSA-900G1M1E1 TSA-900G1M2 TSA-5HP TSA-10HP TSA-700G TSA-700GE
Motor 1100W 3φ 1100W 3φ 1500W 3φ 1500W 3φ 2200W 3φ 2200W 3φ 1100W 3φ 1100W 3φ 4000W 3φ 7500W 3φ 1100 W, 1φ 1100 W, 1φ
Conveying Height 4 m 4 m 4 m 5.5 m 5.5 m 5.5 m 4 m 4 m 6 m 8 m 4 m 4 m
Conveying Capacity 450 kg/h 450 kg/h 500 kg/h 500 kg/h 600 kg/h 600 kg/h 450×2 kg/h 450×2 kg/h 800 kg/h 1000 kg/h 350 kg/h 350 kg/h
Hopper Capacity 7.5 L 7.5 L 7.5 L 7.5 L 12 L 12 L 7.5×2 L 7.5×2 L 25 L 40 L 7.5 L 7.5 L
Conveying Tube I.D. φ38 φ38 φ38 φ38 φ51 φ51 φ38 φ38 φ51 φ51 φ38 mm φ38 mm
Main Unit Dimensions 46×38×70 cm 46×38×70 cm 46×38×70 cm 46×38×70 cm 60×42×73 cm 60×42×73 cm 60×42×73 cm 60×42×73 cm 55×42×130 cm 58×58×140 cm 37×30×55 cm 37×30×55 cm
Hopper Dimensions 34×30×45 cm 34×30×55 cm 34×30×55 cm 34×30×55 cm 40×32×48 cm 40×32×58 cm (34×30×45)×2 cm (34×30×45)×2 cm 38×34×63 cm 38×34×80 cm 34×30×45 cm 34×30×45 cm
Main Unit Weight 46 kg 46 kg 46 kg 58 kg 76 kg 76 kg 80 kg 80 kg 85 kg 105 kg 18 kg 18 kg
Hopper Weight 6 kg 6.5 kg 6.5 kg 6 kg 6.5 kg 6.5 kg 6×2 kg 6×2 kg 7 kg 9 kg 6 kg 6.5 kg
Motor Type Induction Induction Induction Induction Induction Induction Induction Induction Induction Induction Carbon Brush Carbon Brush

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

How It Works

1

Material Demand Detection

The material level sensor detects when additional material is required in the receiving hopper.

2

Vacuum Generation

The blower starts automatically and creates negative pressure inside the hopper receiver.

3

Material Conveying

Plastic material is drawn from the storage tank through the material pipe and transported to the hopper receiver.

4

Automatic Discharge

When the conveying cycle is complete, the blower stops and the collected material is discharged into the hopper by gravity.

5

Cycle Repeats Automatically

The system automatically starts the next conveying cycle whenever the material level falls below the required level.
