Crushing & Recycling Equipment

Model TMD Series

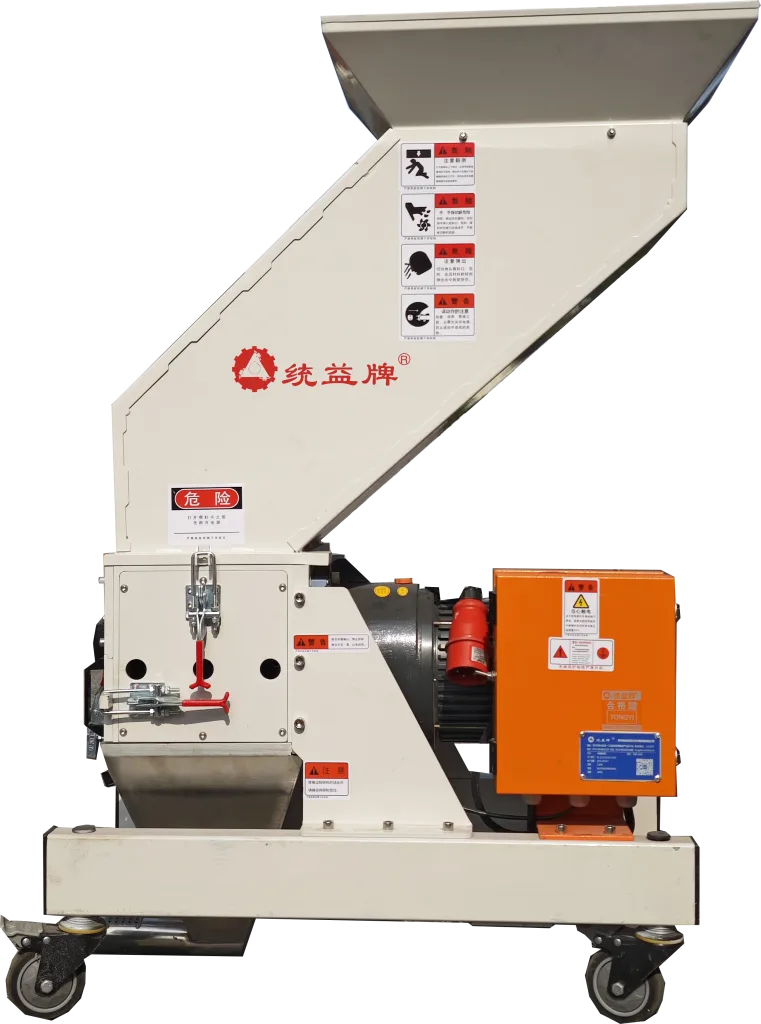

Middle Speed Granulator

Name: Middle Speed Granulator
Brand: TONGYI

Middle-speed granulator for beside-the-machine recycling of plastic runners, sprues, and defective parts, featuring 140 RPM operation, 50–200 kg/h capacity, reduced noise, and uniform regrind.

200 kg/h Max. Crushing Capacity Multiple models cover different beside-the-machine recycling requirements.

140 RPM Middle-Speed Operation Balanced crushing speed delivers efficient recycling with reduced noise and dust.

Low Noise Sound-Reducing Design Double-layer hopper construction helps reduce operating noise in production areas.

Request a Quote View Product Overview

Crushing Capacity: 50–200 kg/h
Rotor Speed: 140 RPM
Motor Power: 2-5 HP
Screen Size: 6 mm

Core Advantages

Efficient Recycling with Better Regrind Quality

The TMD Series Middle Speed Granulator is designed for beside-the-machine recycling of plastic runners, sprues, and small defective molded parts from both rigid and soft plastic materials. Operating at 140 RPM, the granulator provides an effective balance between crushing efficiency, low noise, and reduced material dust. Its multi-directional cutter system and replaceable screen produce consistent regrind particle size for reliable recycling. Three models are available with processing capacities from 50 to 200 kg/h. Double-layer stainless steel hopper construction, easy-access cleaning design, safety interlocks, mobile casters, and optional recycling systems make the TMD Series suitable for continuous injection molding production.

Reduced Operating Noise

Middle-speed crushing and a double-layer hopper help reduce noise for beside-the-machine operation.

Lower Dust Generation

Controlled crushing speed reduces excessive fines and dust compared with conventional high-speed granulation.

Fast Material Recycling

Runners and defective parts can be processed beside the injection molding machine and quickly returned to production.

Consistent Regrind Size

The cutter and screen system produces controlled particle size for more reliable blending with virgin material.

Key Features

Designed for Reliable Plastic Recycling

Double-Layer Stainless Steel Hopper The double-layer stainless steel feeding hopper provides durable construction and improved sound insulation.

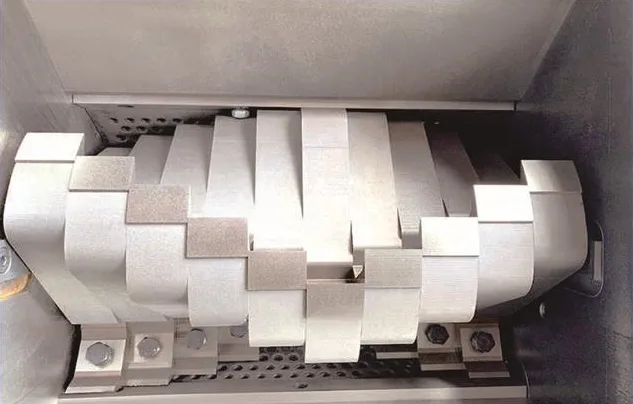

Multi-Directional Cutter System Optimized claw blades provide effective cutting for both rigid and soft plastic runners and defective parts.
Replaceable Screen The detachable screen controls regrind particle size and can be changed to meet different recycling requirements.
Easy Cleaning Design The hopper, cutter chamber, and screen can be quickly opened or removed for convenient cleaning and material changeover.
Compact Mobile Structure A compact footprint and integrated casters make the granulator easy to position beside production equipment.
Safety Interlock Protection Safety switches prevent machine operation when the hopper or crushing chamber is opened.
Optional SKD-11 Blades Optional SKD-11 cutting tools provide enhanced wear resistance for demanding recycling applications.

Technical Specifications

Specification	TMD-2HPZ	TMD-3HPZ	TMD-5HPZ
Crushing Chamber Size	280 × 235 mm	280 × 290 mm	280 × 420 mm
Crushing Capacity	50–100 kg/h	70–150 kg/h	100–200 kg/h
Motor Power	2 HP	3 HP	5 HP
Motor Power	1.5 kW	2.2 kW	3.7 kW
Rotor Speed	140 RPM	140 RPM	140 RPM
Blade Type	Claw Blade + Screen	Claw Blade + Screen	Claw Blade + Screen
Rotary Blades	24 pcs	30 pcs	45 pcs
Screen Size	6 mm	6 mm	6 mm
Size (mm)	8005001100	9005001200	10005001200
Weight	150 kg	160 kg	200 kg

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

How It Works

Material Feeding

Plastic runners, sprues, or defective molded parts enter the crushing chamber through the feeding hopper.

Middle-Speed Cutting

The rotor drives the claw blades at 140 RPM to cut and reduce the plastic material efficiently.

Particle Screening

Crushed material passes through the screen to achieve the required and consistent regrind particle size.

Regrind Collection

Qualified regrind is discharged into a storage tank or transferred through an optional recycling system.

Return to Production

The recycled material can be blended with virgin resin at the required ratio and conveyed back to the processing machine.
