Powerful Granulator

Crushing & Recycling Equipment

Model TMD Series

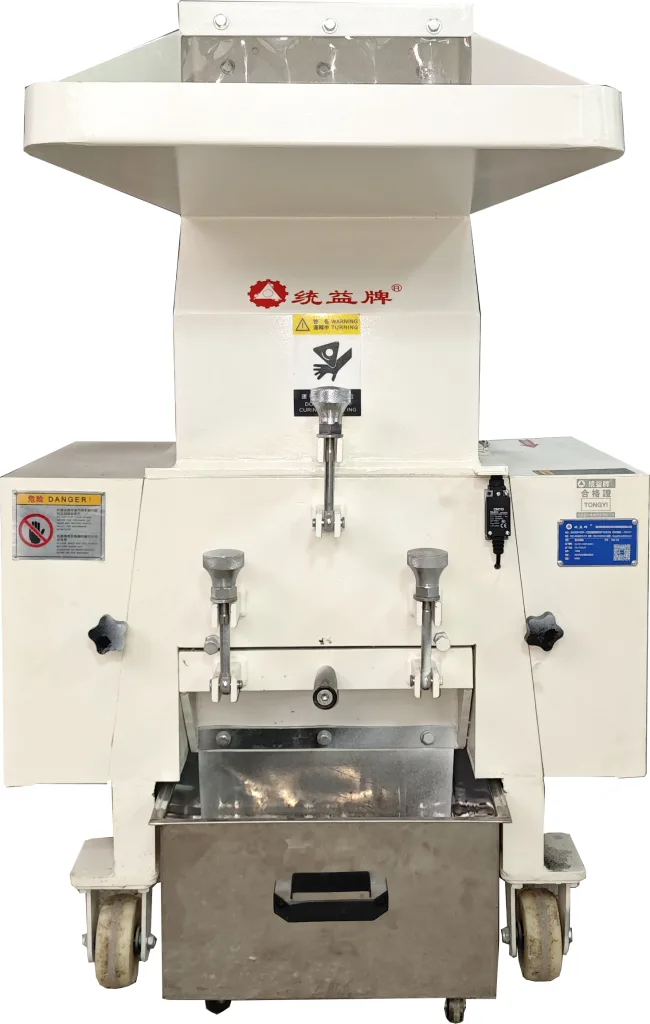

Powerful Granulator

Heavy-duty plastic granulator for high-capacity recycling of runners, defective parts, pipes, profiles, sheets, and large plastic products, with capacities up to 1,600 kg/h and claw or flake blade configurations.

1,600 kg/h Max. Crushing Capacity High-throughput models are available for demanding centralized recycling applications.
75 HP Max. Motor Power Heavy-duty drive options provide strong crushing performance for large plastic products.
2 Types Blade Configuration Claw and flake blade systems are available for different materials and product shapes.
Request a Quote View Product Overview
Crushing Capacity
150–1600 kg/h
Motor Power
3.7–55 kW
Crushing Chamber
230×200–960×600 mm
Screen Size
6–12 mm

Core Advantages

Powerful Crushing for High-Volume Recycling

The TMD Series Powerful Granulator is designed for high-capacity crushing and recycling of plastic runners, defective molded parts, pipes, profiles, sheets, blow-molded products, and large plastic components. Claw blade and flake blade configurations are available to match different material shapes, thicknesses, and crushing requirements. The heavy-duty cutting system provides strong shearing force and efficient size reduction for both individual machines and centralized recycling applications. The series offers crushing capacities from 150 to 1,600 kg/h, with motor powers from 3.7 to 55 kW. Replaceable screens, safety interlocks, motor overload protection, optional SKD-11 cutters, and multiple material collection configurations provide reliable operation for demanding plastic recycling systems.

High Crushing Throughput

High-capacity models process large volumes of plastic waste efficiently for continuous recycling operations.

Wide Material Compatibility

Different blade configurations handle runners, molded parts, pipes, profiles, sheets, and other plastic products.

Centralized Recycling

Large-capacity configurations can support centralized collection and crushing of plastic waste from multiple production machines.

Reduced Material Waste

Qualified regrind can be collected, blended with virgin material, and returned to production to improve material utilization.

Key Features

Qualified regrind can be collected, blended with virgin material, and returned to production to improve material utilization.

  • Claw & Flake Blade Options Two blade configurations are available to match different plastic shapes, wall thicknesses, and crushing requirements.
  • Optimized Cutting Geometry Staggered blade arrangements increase shearing force for effective crushing of thick products and large plastic blocks.
  • Replaceable Screen Different screen sizes can be selected to control the final regrind particle size according to process requirements.
  • Sound-Reducing Design A double sound-reducing structure helps lower operating noise during high-capacity crushing.
  • Multiple Safety Protections Motor overload protection and safety interlocks help prevent operation when access panels or the crushing chamber are opened.
  • Easy Cleaning & Maintenance Accessible hopper, screen, and cutting components simplify internal cleaning, inspection, and material changeover.
  • Optional Cooling System Large models can be equipped with cooling-water circulation to reduce machine temperature and help prevent regrind agglomeration.
  • Optional SKD-11 Cutters Optional SKD-11 cutting tools provide increased wear resistance for demanding long-term recycling applications.
Powerful Granulator

Technical Specifications

Technical Specifications

Specification TMD-50 TMD-75 TMD-100 TMD-150 TMD-200 TMD-300 TMD-500 TMD-750
Crushing Chamber 230×200 mm 310×200 mm 410×235 mm 510×290 mm 510×290 mm 610×320 mm 800×470 mm 960×600
Crushing Capacity 150–200 kg/h 200–300 kg/h 250–400 kg/h 350–600 kg/h 450–700 kg/h 800–1000 kg/h 1100–1300 kg/h 1400–1600
Motor Power 5 HP 7.5 HP 10 HP 15 HP 20 HP 30 HP 50 HP 75 HP
Motor Power 3.7 kW 5.5 kW 7.5 kW 11 kW 15 kW 22 kW 37 kW 55 kW
Rotate Speed 1440 RPM 1440 RPM 1440 RPM 1440 RPM 1440 RPM 1440 RPM 1440 RPM 1440 RPM
Blade Type Flake/Claw Blade Flake/Claw Blade Flake/Claw Blade Flake/Claw Blade Flake/Claw Blade Flake/Claw Blade Claw Blade Claw Blade
Fixed Blades 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs 4 pcs 4 pcs 4 pcs
Rotary Blades 6 pcs/6 pcs 6 pcs/9 pcs 6 pcs/12 pcs 6 pcs/15 pcs 6 pcs/ 15pcs 6 pcs/18 pcs 24 pcs 12 pcs
Screen Size 6 mm 8 mm 8 mm 10mm 10 mm 10 mm 10 mm 12 mm
Total Power 3.7 kW 5.5 kW 7.5 kW 11 kW 15 kW 22 kW 37 kW 55 kW
Size (mm) 980*610*1070 1100*760*1260 1200*860*1290 1450*1050*1610 1450*1050*1610 1630*1200*1680 1730*1490*2230 2580*1760*2700
Weight 170 kg 450 kg 550 kg 900 kg 950 kg 1800 kg 2300 kg 3200 kg

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

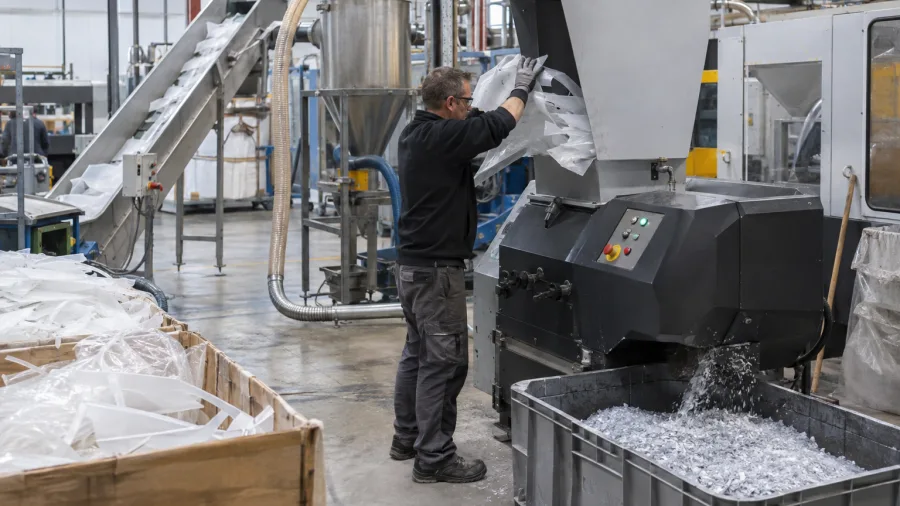

Operating Workflow

How It Works

1

Material Feeding

Plastic runners, defective parts, pipes, profiles, or large plastic products enter the crushing chamber through the feeding hopper.

2

Heavy-Duty Cutting

The high-power rotor drives the claw or flake blades to cut and reduce the plastic material into smaller particles.

3

Particle Screening

Crushed material passes through the selected screen to achieve the required regrind particle size.

4

Material Collection

Qualified regrind is discharged into a storage container or transferred through an optional conveying system.

5

Return to Production

Recycled material can be blended with virgin resin at the required ratio and returned to the production process.
