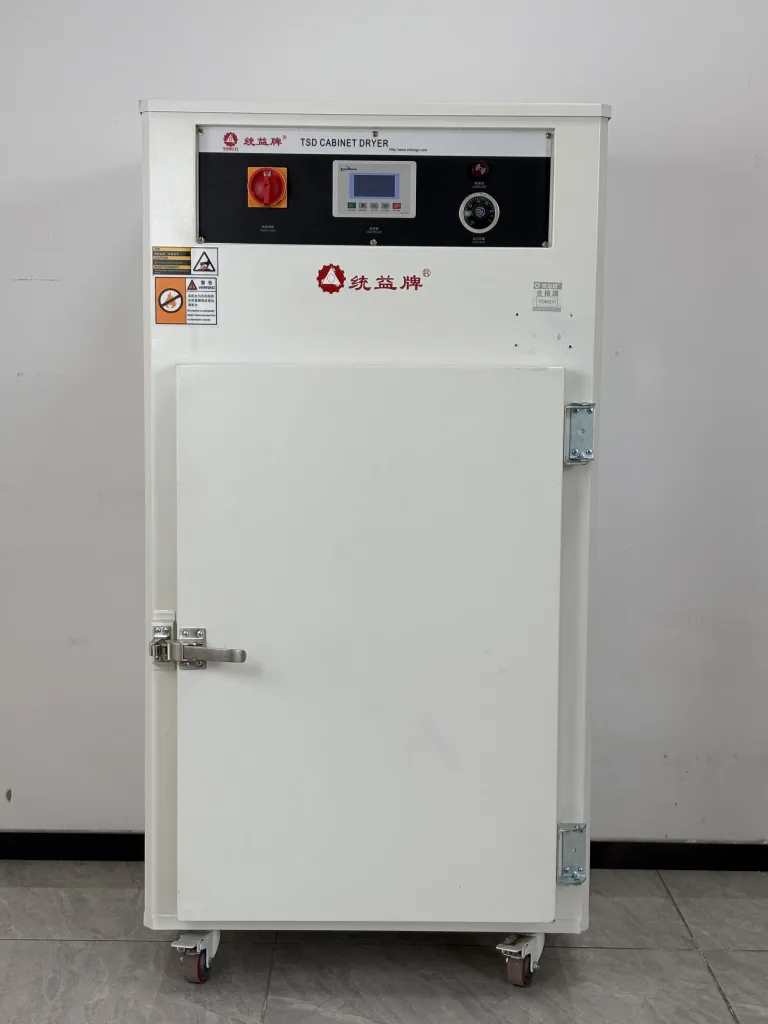

Cabinet Dryer

Drying & Dehumidifying System Equipment

Model TSD Series

Cabinet Dryer

High-temperature cabinet dryer designed for small-batch, multi-material and trial-production drying applications.

Up to 250°C High-Temperature Drying Supports high-temperature drying for a wide range of plastic materials and post-molding tempering applications.
45–180 KG Batch Capacity Range Three cabinet sizes are available to meet different small-batch and multi-material drying requirements.
24H Programmable Timer Control Built-in 24-hour timing and PID temperature control support convenient and stable drying operation.
Request a Quote View Product Overview
No. of Trays
5–20 NO.
Heater Power
4–8 KW
Blower Power
0.37–1.5 KW
Power Supply
3P 380VAC, 50HZ

Core Advantages

Flexible, Uniform and Energy-Efficient Batch Drying

The TSD Series Cabinet Dryer is designed for drying plastic materials in small batches, especially when multiple materials need to be dried simultaneously or during trial molding. It features PID temperature control, insulated construction and uniform hot-air circulation to provide stable and even drying. The system can also be used for tempering plastic parts after molding to help improve product quality. Three models are available, with drying temperatures up to 250°C.

Uniform Drying Performance

PID temperature control and uniform hot-air circulation help maintain consistent temperature throughout the cabinet for even drying.

Energy-Efficient Operation

An insulated door and return-air recycling design help reduce heat loss and unnecessary power consumption.

Flexible Multi-Material Drying

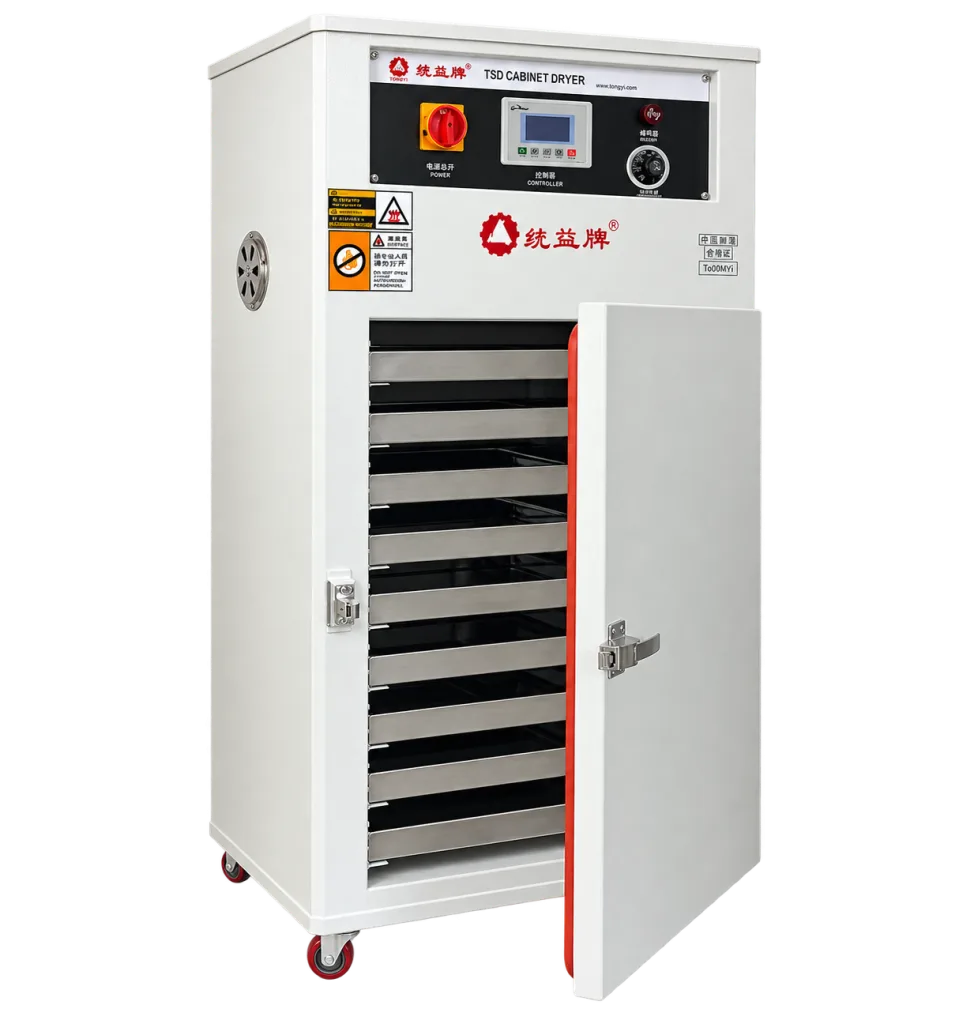

Multiple stainless-steel trays allow different materials to be dried simultaneously, making the system suitable for small-batch and trial-production applications.

Safe & Convenient Operation

Overheat and overload protection, fault alarms and 24-hour timer control support safer and easier daily operation.

Key Features

Key Design Features

  • PID & Integrated Control PID temperature control integrates heating, drying temperature and timing settings for convenient and stable operation.
  • Uniform Hot-Air Circulation Heat-resistant air supply and optimized airflow distribution provide uniform hot air throughout the cabinet for consistent drying.
  • Insulated Energy-Saving Design An airtight insulated door and return-air recycling system help reduce heat loss and improve energy efficiency.
  • Stainless-Steel Drying Trays Stainless-steel trays help prevent material contamination and allow multiple materials to be dried simultaneously.
  • Safety Protection & Fault Alarm Overheat, overload and motor protection are combined with intelligent fault indication and alarm functions for reliable operation.
  • Compact & Mobile Construction Compact powder-coated construction with caster wheels saves floor space and allows convenient relocation.
Cabinet Dryer

Technical Specifications

Technical Specifications

Specification TSD-5 TSD-9 TSD-20
Heater Power (KW) 4 4 8
Blower Power (KW) 0.37 0.37 1.5
Temperature Range (°C) 250 250 250
No. of Trays (NO) 5 9 20
Capacity (KG) 45 81 180
Power Supply 3P 280VAC, 50HZ 3P 280VAC, 50HZ 3P 280VAC, 50HZ
Inside Height (MM) 540 895 1030
Inside Width (MM) 600 600 1040
Inside Depth (MM) 515 515 700
Outside Height (MM) 1160 1530 1830
Outside Width (MM) 780 780 1200
Outside Depth (MM) 620 620 820
Machine Weight (KG) 110 140 400

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

Hot-Air Circulation Drying Process

1

Material Loading

Plastic materials are placed evenly on the movable stainless-steel trays inside the drying cabinet.

2

Air Heating

The blower draws in air and passes it through the electric heater to reach the required drying temperature.

3

Uniform Hot-Air Drying

Heated air is distributed evenly through the cabinet and across the trays, transferring heat to the material and removing moisture.

4

Moisture Exhaust & Recirculation

Moisture-laden air is discharged through the exhaust outlet while the hot-air circulation continues to maintain stable and uniform drying.
