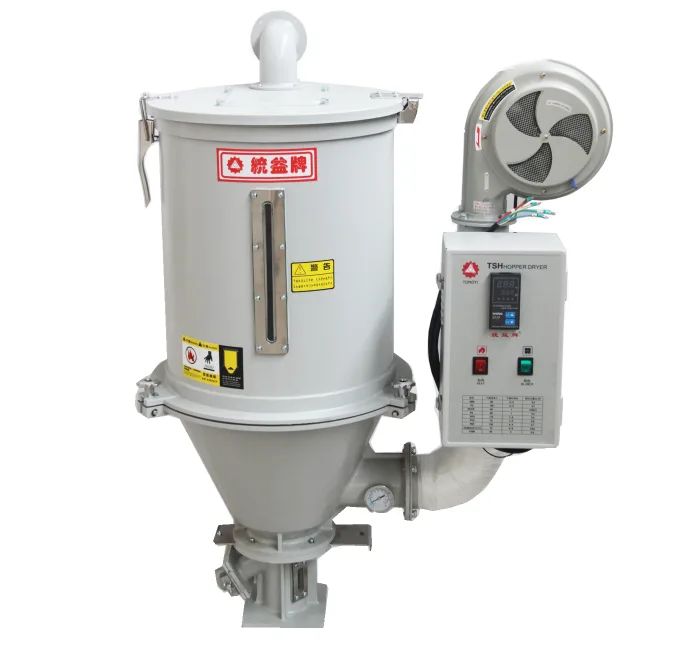

Hopper Dryer

Drying & Dehumidifying System Equipment

Model TSH Series

Hopper Dryer

Hot-air hopper dryer designed for efficient and stable drying of plastic materials.

12–600 KG Wide Capacity Range Multiple hopper capacities are available to meet different plastic material drying requirements.
Up-Blowing Uniform Hot-Air Drying Heated air passes upward through the material via the diffuser and screen separator for even and efficient drying.
Dual Protection Safe & Reliable Operation Overheat and overload protection help reduce operating risks caused by equipment or operating faults.
Request a Quote View Product Overview
Drying Temperature
140 °C
Heater Power
1.8–18 KW
Blower Power
90–350 W
Power Supply
3P 380VAC, 50HZ

Core Advantages

Efficient, Clean and Reliable Material Drying

The TSH Series Hopper Dryer is designed for efficient hot-air drying of plastic materials. Heated air is distributed through the hopper to remove moisture from the material before processing, while PID temperature control helps maintain stable drying conditions. Its simple and practical structure makes it suitable for injection molding and general plastic processing applications.

Uniform Drying Performance

Hot-air up-blowing with a diffuser and screen separator distributes heat evenly through the material for consistent and efficient drying.

Clean Material Handling

Stainless-steel material-contact surfaces and isolated airflow help reduce contamination during material drying.

Easy Cleaning & Maintenance

The hopper barrel can be separated from the base for easier cleaning and faster material changes.

Safe & Reliable Operation

Overheat and overload protection help reduce operating risks caused by equipment or operating faults.

Key Features

Key Design Features

  • Uniform Hot-Air Distribution Bottom air inlet, hot-air diffuser and screen separator distribute heated air evenly through the material for efficient drying.
  • Clean Material Contact Stainless-steel material-contact surfaces and an isolated blower design help reduce material contamination during drying.
  • Easy Cleaning & Material Change The hopper barrel can be separated from the base for convenient cleaning and faster material changes.

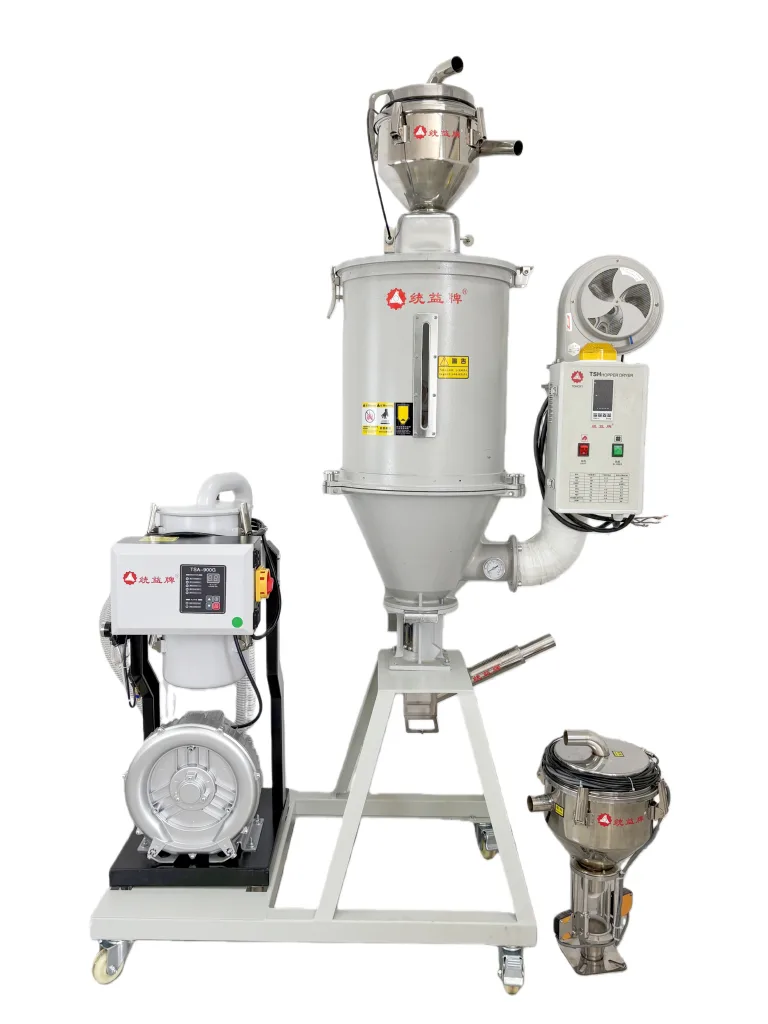

  • Easy Inspection & Loader Installation A see-through window allows quick material-level inspection, while the inlet cover simplifies autoloader installation.
  • Overheat & Overload Protection Dual safety protection helps reduce operating risks caused by overheating, overload or equipment faults.
  • Optional Energy-Saving & Filtration Accessories Optional hot-air recycling, exhaust-air filtration, hopper magnets and weekly timer control are available for specific operating requirements.
Hopper Dryer

Technical Specifications

Technical Specifications

Specification TSH-12E TSH-25E TSH-50E TSH-75E TSH-100E TSH-150E TSH-200E TSH-300E TSH-400E TSH-600E
Hopper Capacity (KG) 12 25 50 75 100 150 200 300 400 600
Blower Power (W) 90 135 155 155 215 215 320 350 350 1050
Heater Power (KW) 1.8 3.5 4.5 4.5 6.5 9.0 12.0 15 18 24
Drying Temperature (°C) 140 140 140 140 140 140 140 140 140 140
Power Supply 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ
Control Voltage 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ
Total Power (KW) 2 3.6 4.7 4.7 6.7 9.2 12.3 15.3 18.3 25
Base Installation Length (MM) 110 150 160 160 178 178 200 200 280 280
Base Installation Width (MM) 110 150 160 160 178 178 200 200 280 280
Machine Length (MM) 760 830 920 960 1070 1140 1270 1360 1430 1610
Machine Width (MM) 490 580 590 600 700 780 830 970 1030 1440
Machine Height (MM) 700 840 940 1010 1080 1230 1410 1580 1700 2000
Machine Weight (KG) 28 34 45 56 68 78 110 152 170 280

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

Hot-Air Drying Process

1

Air Heating

The blower draws in air and delivers it through the heater to reach the required drying temperature.

2

Up-Blowing Drying

Heated air enters from the bottom of the hopper and passes upward through the diffuser and screen separator, distributing heat evenly through the plastic material.

3

Moisture Exhaust

The heated air absorbs moisture from the material and is discharged from the upper part of the hopper, allowing continuous hot-air drying.
