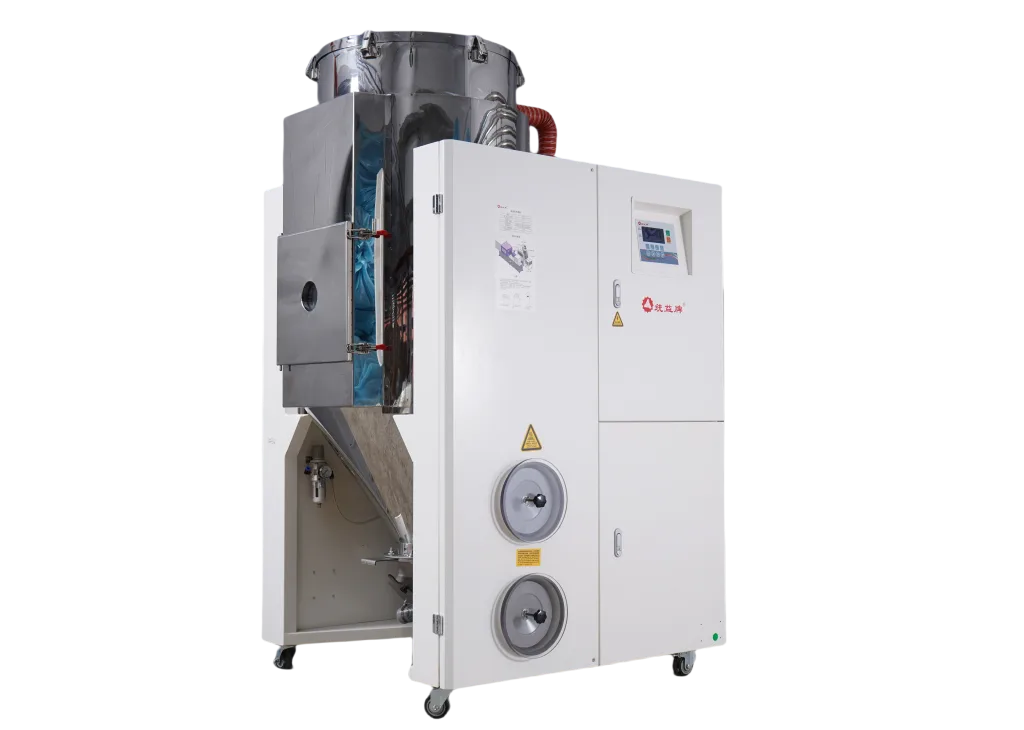

Three-in-One Dehumidifying Dryer

Drying & Dehumidifying System Equipment

Model TCD Series

Three-in-One Dehumidifying Dryer

Integrated dehumidifying, drying and material conveying in one compact system for hygroscopic plastic materials.

3 in 1 Integrated Functions Combines dehumidifying, drying and material conveying in one compact system.
-32 to -40°C Stable Dew Point Provides stable low-dew-point dry air for reliable drying of hygroscopic engineering plastics.
±0.1°C Precise Temperature Control Microprocessor control maintains accurate regeneration temperature for stable dehumidification performance.
Request a Quote View Product Overview
Hopper Capacity
12–500 kg
Dehumidifying Air Capacity
60–500 m³/h
Drying Temperature
180 °C
Power Supply
3P 380VAC, 50Hz

Core Advantages

Integrated, Stable and Energy-Efficient Drying

The TCD Series 3 in 1 Compact Dehumidifying Dryer integrates dehumidifying, drying and material conveying functions into one compact system. It is designed for drying hygroscopic engineering plastics such as PA, PC, PBT and PET. The integrated design reduces installation space and simplifies material drying and conveying for plastic processing applications.

3 in 1 Integrated Design

Combines dehumidifying, drying and material conveying in one compact unit, helping reduce installation space and simplify material handling.

Stable Drying Performance

Precise regeneration temperature control and low-dew-point dry air help maintain consistent drying conditions for hygroscopic plastics.

Energy-Efficient Operation

Low-temperature regeneration, timed preheating and insulated hopper construction help reduce unnecessary energy consumption.

Automated & Reliable Operation

Weekly timing, automatic conveying control, fault indication and intelligent alarms support convenient and reliable continuous operation.

Key Features

Key Design Featuress

  • Smart Microprocessor Control Precise regeneration temperature control, intelligent preheating and weekly timer settings support stable and automated operation.
  • Integrated 3 in 1 System Combines dehumidifying, drying and material conveying in one compact unit, with optional multi-stage conveying configurations.
  • Efficient Dehumidifying & Drying Honeycomb rotor dehumidification, low-temperature regeneration and an insulated down-blowing hopper work together to improve drying stability and energy efficiency.
  • Clean & Closed Material Handling Return-air filtration, closed-loop conveying and stainless-steel conveying components help reduce dust, moisture regain and material contamination.
  • Reliable System Integration & Protection RS485 communication, fault indication, intelligent alarms and multiple protection functions support centralized monitoring and reliable operation.
Three-in-One Dehumidifying Dryer

Technical Specifications

Technical Specifications

Specification TCD-12/60 TCD-25/60 TCD-50/60 TCD-75/90 TCD-100/120 TCD-150/150 TCD-200/200 TCD-300/300 TCD-400/400 TCD-500/500
Hopper Capacity (KG) 12 25 50 75 100 150 200 300 400 500
Drying Blower Power - 50HZ (KW)) 0.4 0.4 0.4 0.85 0.85 1.3 2.55 3.45 3.45 4.6
Drying Blower Power - 60HZ (KW)) 0.5 0.5 0.5 0.95 0.95 1.5 2.55 3.45 3.45 4.6
Drying Hearter Power - 50HZ (KW)) 3.8 3.8 3.8 3.8 7.4 7.4 11 11 16 16
Drying Hearter Power - 60HZ (KW)) 3.8 3.8 3.8 7.4 7.4 11 11 11 16 16
Drying Temperature (°C) 180 180 180 180 180 180 180 180 180 180
Regeneration Blower Power (50HZ)(KW)) 0.2 0.2 0.2 0.4 0.4 0.4 0.4 0.7 0.7 0.7
Regeneration Blower Power (60HZ)(KW)) 0.23 0.23 0.23 0.5 0.5 0.5 0.5 0.83 0.83 0.83
Regeneration Hearter Power (50HZ)(KW)) 3.8 3.8 3.8 3.8 3.8 3.8 7.4 7.4 7.4 7.4
Regeneration Hearter Power (60HZ)(KW)) 3.8 3.8 3.8 3.8 3.8 3.8 7.4 7.4 7.4 7.4
Dehumidifying Air Capacity (Dehumidifying Air Capacity (M³/H) 60 60 60 90 120 150 200 300 400 500
Conveying Blower Power - 50HZ (KW)) 0.85 0.85 0.85 0.85 1.3 1.3 1.6 1.6 2.2 2.2
Conveying Blower Power - 60HZ (KW)) 0.95 0.95 0.95 0.95 1.5 1.5 2.1 2.1 2.55 2.55
Photoelectric Hopper Receiver (L) 3 3 3 3 7.5 7.5 7.5 7.5 12 12
Vacuum Hopper Receiver (L) 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 12 12
Cooling Water Flow (LPM) 10 10 10 15 20 30 50 60 70 100
Cooling Water Pipe Size (INCH) frac{3}{4} ½ ½ ½ ¾ ¾ ¾ ¾ ¾ ¾
Power Supply 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ
Control Voltage 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ
Total Power - 50HZ (KW)) 9.05 9.05 9.05 10.5 13.75 14.2 24 24.5 30 31
Total Power - 60HZ (KW)) 9.35 9.35 9.35 10.85 14.15 14.6 24.95 25.6 31 32.1
Machine Length(MM) 745 850 850 850 1000 1150 1150 1150 1200 1200
Machine Width (MM) 810 950 950 950 1200 1300 1300 1300 1670 1700
Machine Height (MM) 1350 1650 1650 1800 1950 1950 2050 2350 2500 2900
Machine Weight (KG) 200 200 208 230 290 332 360 390 460 510

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

Integrated 3 in 1 Drying & Conveying Process

1

Dehumidification

Return air is filtered and dehumidified through the honeycomb rotor system to provide stable low-dew-point dry air for material drying.

2

Drying

The dehumidified air is heated and delivered to the insulated hopper dryer, where moisture is removed from hygroscopic plastic materials under controlled drying conditions.

3

Material Conveying

After drying, the material is automatically conveyed through the integrated stainless-steel conveying system to the processing machine for continuous production.
