EU Hopper Dryer

Drying & Dehumidifying System Equipment

Model TSH Series

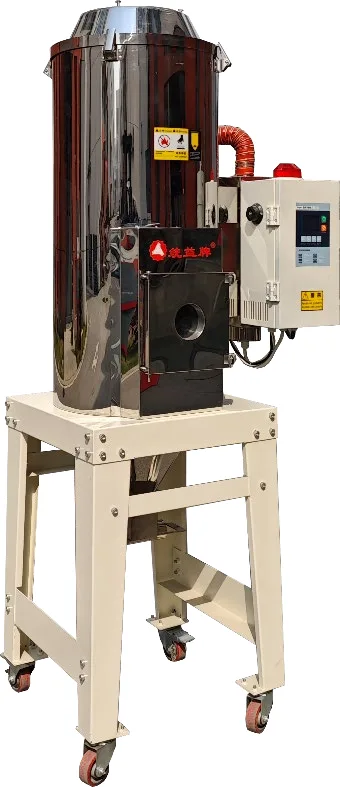

EU Hopper Dryer

Double-layer stainless-steel hopper dryer designed for uniform and efficient drying of plastic materials.

25–1500 kg Wide Capacity Range Multiple hopper capacities are available to meet different plastic drying requirements.
±1°C Precise PID Control PID temperature control helps maintain stable and accurate drying temperatures during operation.
Double-Layer Stainless-Steel Insulated Hopper Double-layer stainless-steel hopper construction with thermal insulation helps reduce heat loss and supports cleaner material drying.
Request a Quote View Product Overview
Hopper Construction
Double-Layer Stainless Steel
Drying Method
Hot-Air Down-Blowing
Control System
PID Temperature Control
Timer Control
7-Day Weekly Timer

Core Advantages

Efficient, Clean and Reliable Drying

The TSH Series EU Hopper Dryer features a double-layer stainless-steel hopper with thermal insulation and adopts hot-air down-blowing and cyclone air-exhausting principles to provide uniform drying of plastic materials. Its high-temperature drying air passes evenly through the material, helping improve drying efficiency and maintain consistent drying conditions. The series is available in hopper capacities from 25 to 1500 kg and is especially suitable for applications requiring clean and efficient material drying.

Uniform Drying Performance

Down-blowing hot air, cyclone exhaust and precise PID temperature control help provide uniform and stable drying conditions.

Clean Material Contact

Stainless-steel material-contact surfaces help prevent contamination and support cleaner plastic processing.

Energy-Efficient Operation

Double-layer stainless-steel construction with thermal insulation helps reduce heat loss, while weekly timer control helps avoid unnecessary operating time.

Safe & Reliable Operation

High-temperature-resistant blower design and dual overheat and overload protection support reliable long-term operation.

Key Features

Key Design Features

  • Uniform Down-Blowing Drying Hot-air down-blowing and cyclone exhaust provide even airflow through the material for more uniform drying.
  • PID & Weekly Timer Control PID temperature control maintains accurate drying temperature, while weekly timer settings support automatic scheduled operation.
  • Insulated Stainless-Steel Hopper Double-layer stainless-steel construction with thermal insulation helps reduce heat loss, while material-contact surfaces resist contamination.
  • High-Temperature Blower & Dual Protection A heat-resistant blower supports long-term operation, with overheat and overload protection for added safety.
  • Easy Inspection & Loader Integration See-through windows allow quick material-level inspection, while the lift-up cover simplifies autoloader installation.
  • Optional Energy-Saving & Filtration Accessories Optional hot-air recycling, exhaust-air filtration and hopper magnet configurations can improve energy efficiency and material cleanliness.
EU Hopper Dryer

Technical Specifications

Technical Specifications

Specification TSH-25S TSH-50S TSH-75S TSH-100S TSH-150S TSH-200S TSH-300S TSH-400S TSH-500S TSH-600S TSH-800S TSH-1000S TSH-1500S
Hopper Capacity (KG) 25 50 75 100 150 200 300 400 500 600 800 1000 1500
Blower Power (W) 135 155 155 215 215 350 350 450 450 1030 1500 1500 2200
Heater Power (kW) 3.8 3.8 3.8 7.4 7.4 11 11 16 16 20 32 32 36
Drying Temperature 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable 60-180°C Adjustable
Power Supply 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ 3P 380VAC, 50HZ
Control Voltage 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ 1P 220VAC, 50HZ
Total Power (KW) 3.9 4.0 4.0 7.6 7.6 11.4 16.5 16.5 16.5 21 33.5 33.5 38.2
Machine Length (MM) 700 780 780 920 1120 1120 1140 1300 1500 1560 1770 1830 1770
Machine Width (MM) 650 700 700 790 900 900 920 960 1150 1180 1300 1350 1250
Machine Height (MM) 1150 1230 1350 1550 1570 1730 2030 2750 2550 2650 2880 3050 3560
Machine Weight (KG) 30 40 48 50 69 75 103 162 196 337 400 480 560

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

Hot-Air Drying Process

1

Air Heating

The blower draws in air and delivers it through the heater, where it is heated to the set drying temperature.

2

Down-Blowing Drying

The heated air enters the hopper from the bottom and passes evenly through the plastic material, transferring heat and removing moisture from the resin.

3

Moisture Exhaust

Moisture-laden air is discharged from the top of the hopper through the cyclone exhaust path, allowing the drying process to continue continuously.
