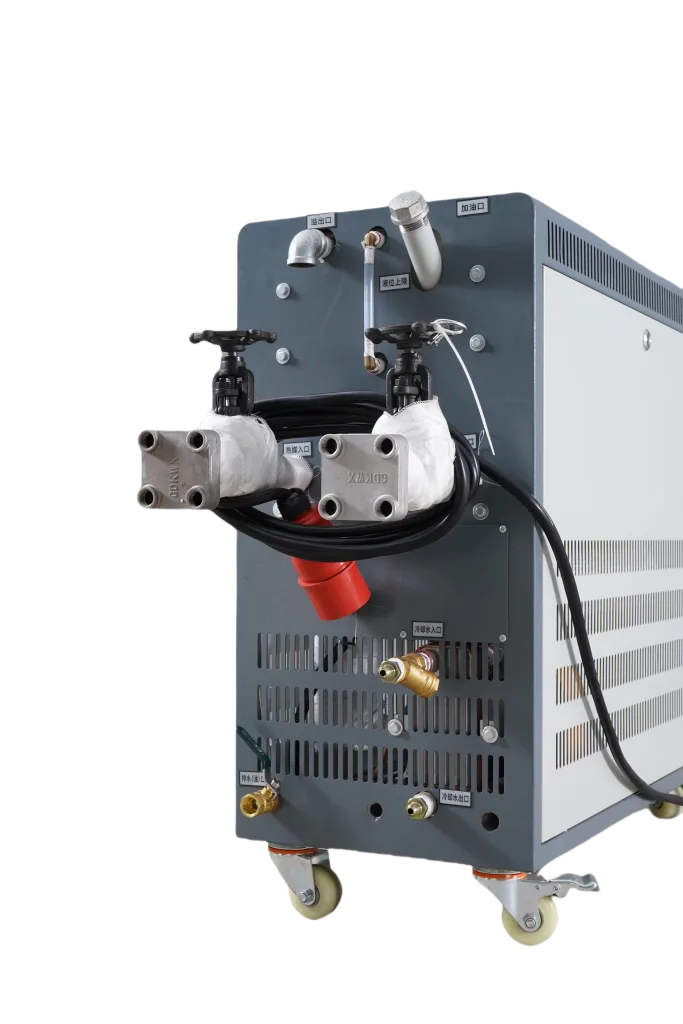

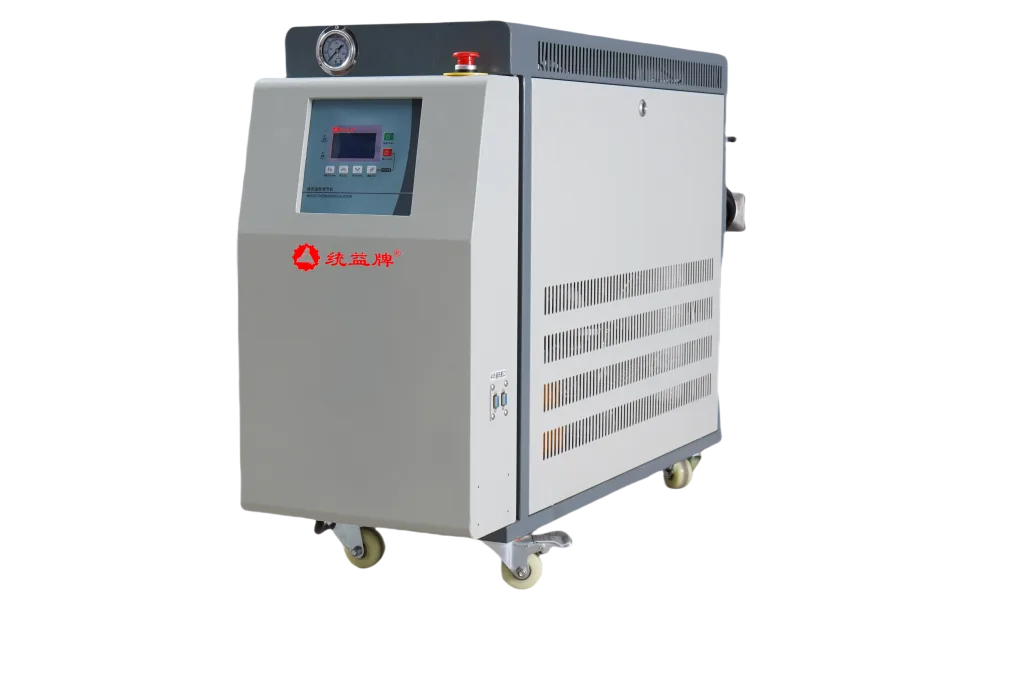

High Temp. Oil Type Mold Temperature Controller

Cooling & Heating System Equipment

Model TMA Series

High Temp. Oil Type Mold Temperature Controller

High-temperature oil mold temperature control up to 300°C with precise PID regulation, high-flow circulation, return oil temperature monitoring, and two-stage heating.

300°C Max. Temperature Designed for demanding high-temperature mold control applications.
±0.1°C Temperature Accuracy PID control maintains stable and consistent process temperatures.
2-Stage Heating Control Two-stage heating provides rapid temperature rise when required.
Request a Quote View Product Overview
Max. Temperature
300 °C
Temperature Accuracy
±0.1 °C
Heating Capacity
18–48 kW
Pump Max. Flow
130–320 L/min

Core Advantages

Stable High-Temperature Control for Demanding Processes

The TMA Series High Temperature Oil Mold Temperature Controller is designed for molding processes requiring stable operation at temperatures up to 300°C. A high-flow, high-pressure circulation system helps reduce temperature differences throughout the mold circuit, while return oil temperature monitoring provides better visibility of actual process conditions. Intelligent PID control maintains temperature accuracy within ±0.1°C for stable and consistent operation. The two-stage heating system allows rapid temperature rise when required, while multiple electrical, pump, heating, oil-level, and oil-circuit protection functions support safe and reliable high-temperature operation.

Faster Temperature Rise

Two-stage heating shortens warm-up time and helps the process reach operating temperature faster.

Reduced Temperature Difference

High-flow, high-pressure oil circulation promotes more uniform thermal conditions throughout the mold circuit.

Better Process Visibility

Return oil temperature monitoring allows operators to see actual circulating oil temperature during production.

Stable Continuous Operation

Precise temperature regulation supports consistent thermal conditions during long high-temperature production cycles.

Key Features

Engineered for High-Temperature Oil Control

  • Intelligent PID Control Automatic PID regulation provides accurate temperature control within ±1°C throughout operation.
  • Two-Stage Heating Selectable two-stage heating provides additional heating capacity for rapid temperature increase when required.
  • High-Flow Oil Circulation High-flow and high-pressure circulation improves heat transfer and helps minimize temperature differences.
  • Return Oil Temperature Display Return oil temperature is monitored and displayed for more accurate process observation and adjustment.
  • Multiple Safety Protections Built-in protection covers phase loss, reverse phase, pump overload, heater overload, low medium level, and inlet over-temperature.
  • Oil Circuit Protection Oil overflow protection and dedicated high-temperature oil-circuit safety design enhance operational reliability.
High Temp. Oil Type Mold Temperature Controller

Technical Specifications

Technical Specifications

Specification TMA-180 TMA-240 TMA-360 TMA-480
Pump Power 2 HP 2 HP 3 HP 4 HP
Heater Power 9 kW × 2 12 kW × 2 12 kW × 3 12 kW × 4
Pump Max. Flow 2.2 kg/cm² 2.2 kg/cm² 2.5 kg/cm² 3.2 kg/cm²
Pump Pressure 130 L/min 130 L/min 165 L/min 200 L/min
Outlet & Inlet Diameter 3/8" × 4 3/8" × 4 1" × 1 1-1/2" × 1
Machine Size (mm) 1150 × 500 × 850 1150 × 500 × 850 1400 × 600 × 850 1650 × 620 × 1450
Weight 130 kg 160 kg 190 kg 240 kg

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

How It Works

1

Oil Circulation

The circulation pump delivers heat transfer oil continuously between the controller and the mold circuit.

2

Two-Stage Heating

The heating system rapidly raises the circulating oil toward the required operating temperature.

3

Mold Heat Transfer

Heated oil flows through the mold channels to transfer thermal energy and maintain the required mold temperature.

4

Temperature Monitoring & Control

The controller monitors process and return oil temperatures and continuously adjusts heating to maintain the set temperature.
