Cooling & Heating System Equipment

Model TCO Series

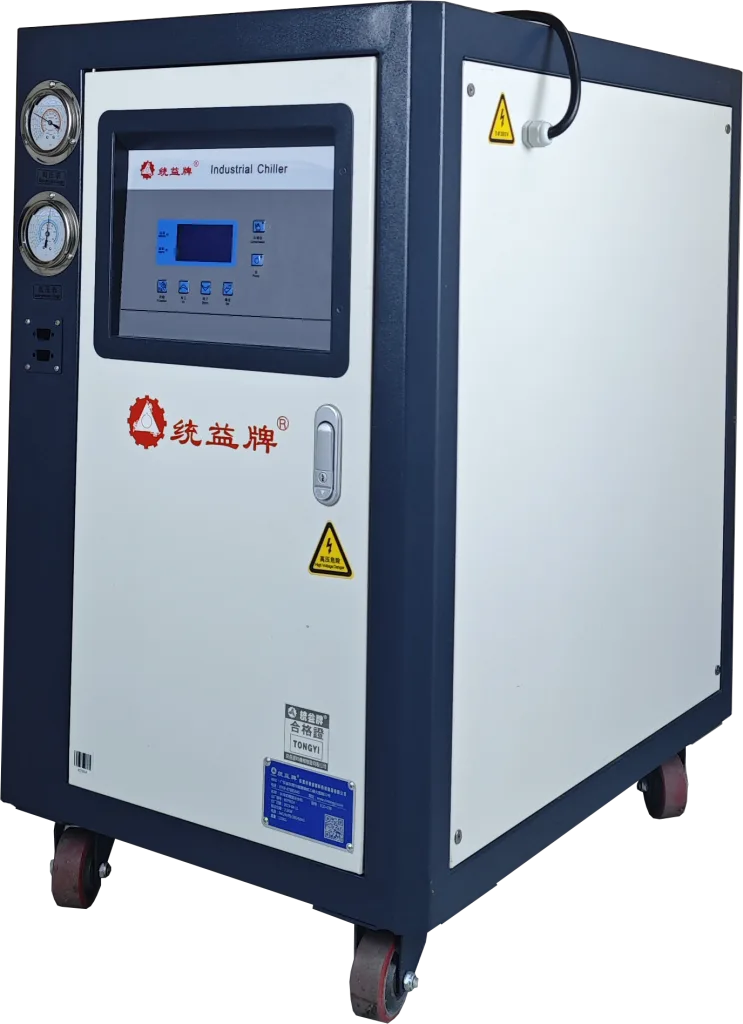

Water Cooled Chiller

Name: Water Cooled Chiller
Brand: TONGYI

Industrial water-cooled chiller with 5–35°C temperature control, ±1°C accuracy, cooling capacity up to 108 kW, efficient heat exchange, and reliable operation for mold and process cooling.

5–35°C Temperature Range Stable chilled water temperature control for industrial cooling applications.

±1°C Temperature Accuracy Precise temperature regulation maintains consistent cooling conditions.

108 kW Max. Cooling Capacity Multiple capacities available for single-machine and centralized cooling systems.

Request a Quote View Product Overview

Temperature Range: 5–35 °C
Temperature Accuracy: ±1 °C
Cooling Capacity: 9–108 kW
Compressor Power: 3–36 HP

Core Advantages

Efficient Cooling for Stable Production

The TCO Series Water-Cooled Chiller is designed to provide stable and efficient cooling for injection molding and other industrial processes. It accurately controls chilled water temperature from 5°C to 35°C with temperature accuracy within ±1°C. The series uses scroll compressors, high-efficiency evaporators, and tube-in-shell condensers to provide rapid heat transfer and stable cooling performance. Cooling capacities range from 9 kW to 108 kW, making the series suitable for both individual machines and centralized multi-machine cooling systems. In injection molding applications, stable chilled water helps shorten molding cycles, accelerate product cooling, reduce deformation and shrinkage, and improve overall product quality. RS485 communication, multiple safety protections, and optional special configurations are available for different production requirements.

Shorter Molding Cycles

Rapid and stable mold cooling helps reduce cooling time and increase production efficiency.

Improved Product Quality

Consistent cooling helps reduce shrinkage and deformation while improving dimensional and surface quality.

Stable Continuous Cooling

Reliable chilled water circulation maintains consistent process conditions during continuous production.

Flexible System Integration

Suitable for both one-to-one machine cooling and centralized one-to-many production layouts.

Key Features

Engineered for Reliable Industrial Cooling

Precision Temperature Control High-precision temperature control maintains chilled water between 5°C and 35°C with accuracy within ±1°C.
High-Efficiency Scroll Compressor Scroll compressor technology provides stable cooling performance, energy efficiency, low noise, and long service life.
304 Stainless Steel Water Tank The insulated 304 stainless steel water tank offers corrosion resistance, long service life, and convenient cleaning.
Efficient Heat Exchange High-efficiency evaporator and condenser designs provide rapid heat transfer and strong cooling performance.
Multiple Safety Protections Built-in protection includes phase loss, reverse phase, electrical fault, and anti-freeze protection for safer operation.
RS485 Communication Standard RS485 communication supports centralized monitoring and integration with automated production systems.
Special Configurations Available Corrosion-resistant and ultra-low-temperature configurations are available for special process requirements.

Technical Specifications

Specification	TCO-05B	TCO-10B	TCO-15B	TCO-20B	TCO-25B	TCO-30B	TCO-40B	TCO-50B
Refrigerant Capacity (BTU/KCAL)	51200/12900	102400/25800	163800/41280	204100/51433	232100/58490	314000/79100	406000/102300	487200/122760
Output Power (KW)	3.7	7.5	11	15	18	22	30	36
Refrigerant ID (PT)	3/8" *4	2"	2.5"	2.5"	2.5"	3"	3"	3"
Pump Power (KW)	0.75	1.5	2.2	2.2	3.7	3.7	5.5	5.5
Refrigerant Flow (L/MIN)	110	200	350	350	600	600	900	900
Tank Capacity (L)	80	150	190	290	340	500	650	650
Size (MM)	8605501070	13506501390	15508001500	16008001600	17008001600	210010001720	250012001720	250012001720
Weight (KG)	130	380	580	750	920	1100	1500	1600

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

How It Works

Chilled Water Circulation

The water pump circulates chilled water between the chiller and the mold or process equipment.

Process Heat Absorption

Chilled water absorbs heat from the mold or equipment and returns to the chiller at a higher temperature.

Refrigeration Cooling

The refrigeration circuit removes heat from the returning water through the evaporator.

Heat Rejection

The condenser transfers collected heat to the cooling-water circuit, which carries it to the cooling tower.

Automatic Temperature Control

The controller continuously regulates the refrigeration system to maintain the required chilled water temperature.
