Oil Type Mold Temperature Controller

Cooling & Heating System Equipment

Model TMC Series

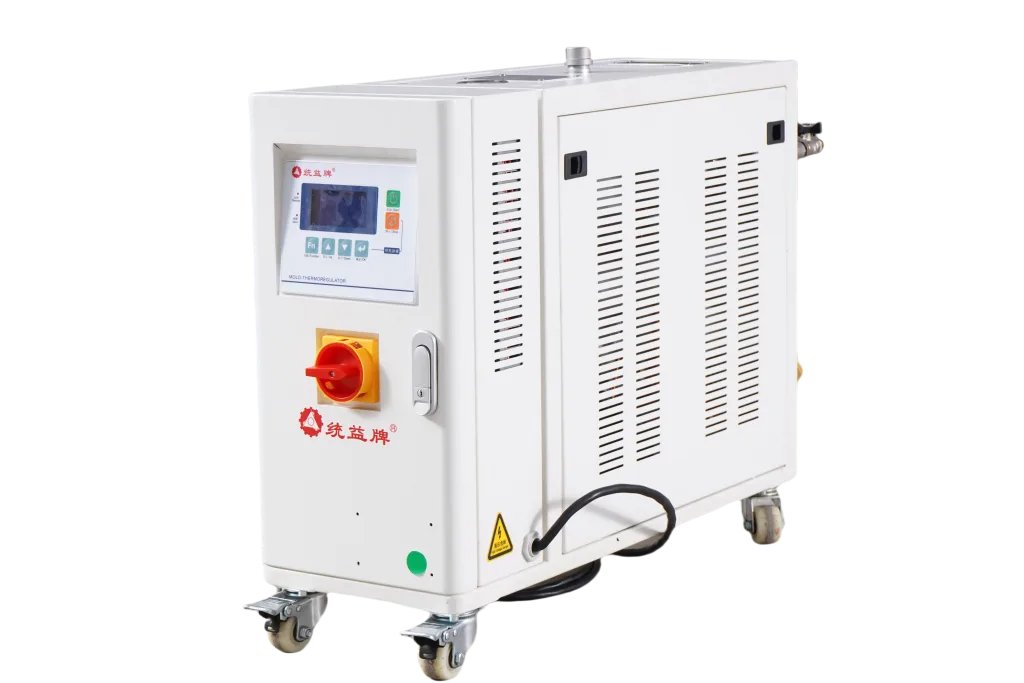

Oil Type Mold Temperature Controller

200°C Oil Type Mold Temperature Controller | TMC Series

200°C Standard Max. Temperature Stable heat transfer oil control for high-temperature molding applications.
±0.1°C Temperature Accuracy Dual PID control maintains precise and repeatable process temperatures.
RS485 Communication Supports centralized monitoring and automation integration.
Request a Quote View Product Overview
Max. Temperature
200 °C
Temperature Accuracy
±0.1 °C
Heater Power / Circuit
6–36 kW
Pump Max. Flow
42–310 L/min

Core Advantages

Stable Temperature Control for Better Molding

The TMC Series Oil Type Mold Temperature Controller is designed for precise and stable mold temperature control in injection molding processes. Using heat transfer oil as the circulating medium, it provides excellent thermal stability and is suitable for applications requiring higher operating temperatures. The system uses intelligent dual PID control to automatically regulate heating and cooling, maintaining temperature accuracy up to ±0.1°C. Indirect cooling prevents cooling water from mixing with the heat transfer oil and provides stable temperature regulation throughout production. Standard models operate up to 200°C, while high-temperature versions are available up to 300°C. High-quality components, integrated 304 stainless steel piping, multiple safety protections, and RS485 communication ensure reliable long-term operation and easy automation integration.

Faster Mold Warm-Up

Rapid heating brings the mold to the required temperature quickly, reducing production preparation time.

Consistent Product Quality

Stable mold temperature helps reduce common molding defects and improves dimensional consistency.

Improved Energy Efficiency

Optimized heating control reduces unnecessary energy consumption while maintaining stable process temperatures.

Stable Continuous Production

Continuous oil circulation maintains consistent thermal conditions throughout long production cycles.

Key Features

Engineered for Reliable High-Temperature Control

  • Dual PID Temperature Control Intelligent dual PID control automatically regulates heating and cooling for precise temperature management.
  • Weekly Timer Function Programmable automatic start and stop scheduling supports efficient production planning and energy management.
  • Efficient Heating Design Optimized heating control provides rapid temperature rise while reducing unnecessary power consumption.
  • Isolated Electrical Cabinet The electrical control section is isolated from the heating area to reduce heat exposure and protect electrical components.
  • 304 Stainless Steel Piping Integrated 304 stainless steel piping provides smooth circulation, even heating, corrosion resistance, and long service life.
  • Multiple Safety Protections Built-in protection for pump overload, overheating, low liquid level, and electrical abnormalities helps ensure safe operation.
  • RS485 Communication Standard RS485 communication supports connection with injection molding machines and centralized monitoring systems.

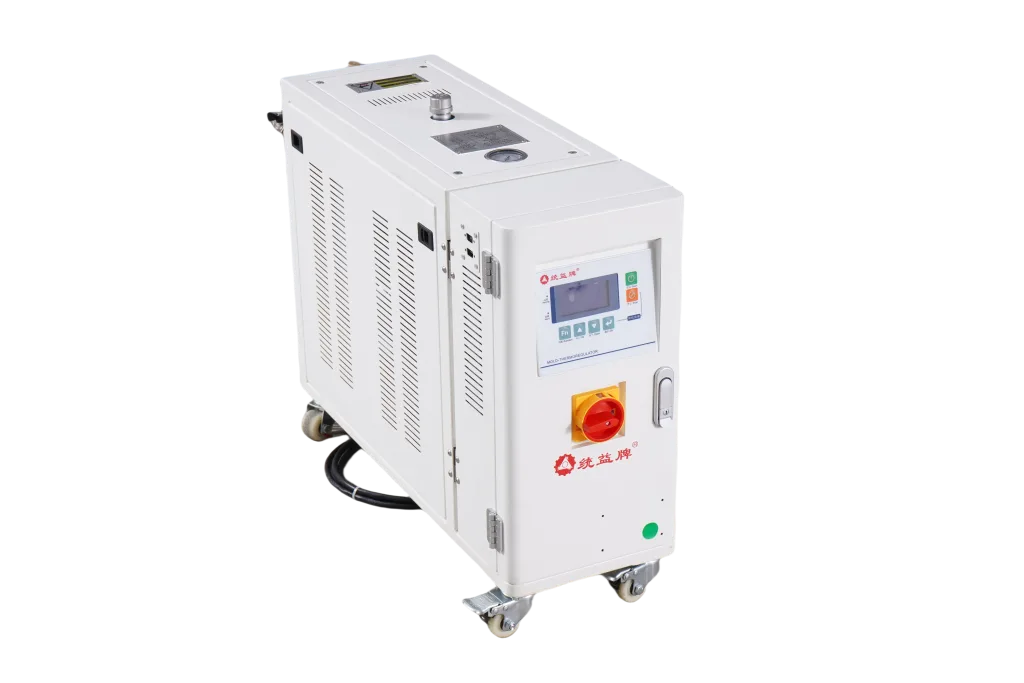

Oil Type Mold Temperature Controller

Technical Specifications

Technical Specifications

Specification TMC-60 TMC-90 TMC-120 TMC-180 TMC-240 TMC-360 TMC-66 TMC-99 TMC-1212 TMC-1818 TMC-2424 TMC-3636
Heater Power (kW) 6 9 12 18 24 36 6×2 9×2 12×2 18×2 24×2 36×2
Pump Power (kW) 0.37 0.75 0.75 1.5 1.5 2.2 0.37×2 0.75×2 0.75×2 1.5×2 1.5×2 2.2×2
Pump Max. Flow (L/min) 42 60 60 165 165 310 42 60 60 165 165 310
Max. Pressure (MPa) 0.35 0.40 0.40 0.24 0.24 0.26 0.35 0.40 0.40 0.24 0.24 0.26
Inlet/Outlet Type 2 In 2 Out 4 In 4 Out 4 In 4 Out 1 In 1 Out 1 In 1 Out 1 In 1 Out 2 In 2 Out ×2 4 In 4 Out ×2 4 In 4 Out ×2 1 In 1 Out ×2 1 In 1 Out ×2 1 In 1 Out ×2
Inlet/Outlet Diameter 3/8" 3/8" 3/8" 1" 1" 1.2" 3/8" 3/8" 3/8" 1" 1" 1.2"
Dimension L×W×H (mm) 850×265×620 850×265×620 850×365×720 850×365×720 850×365×720 850×500×750 1100×380×1050 1100×380×1050 1100×380×1050 1100×600×1000 1100×600×1000 1250×650×1000

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

Operating Workflow

1

Oil Circulation

The circulation pump continuously delivers heat transfer oil through the temperature control system and mold circuit.

2

Rapid Heating

The heater raises the circulating oil to the required process temperature under automatic PID control.

3

Mold Heat Transfer

Conditioned oil flows through the mold channels to transfer heat and maintain the required mold temperature.

4

Indirect Cooling & Recirculation

When cooling is required, return oil is cooled through an indirect heat exchanger before being recirculated through the system.
