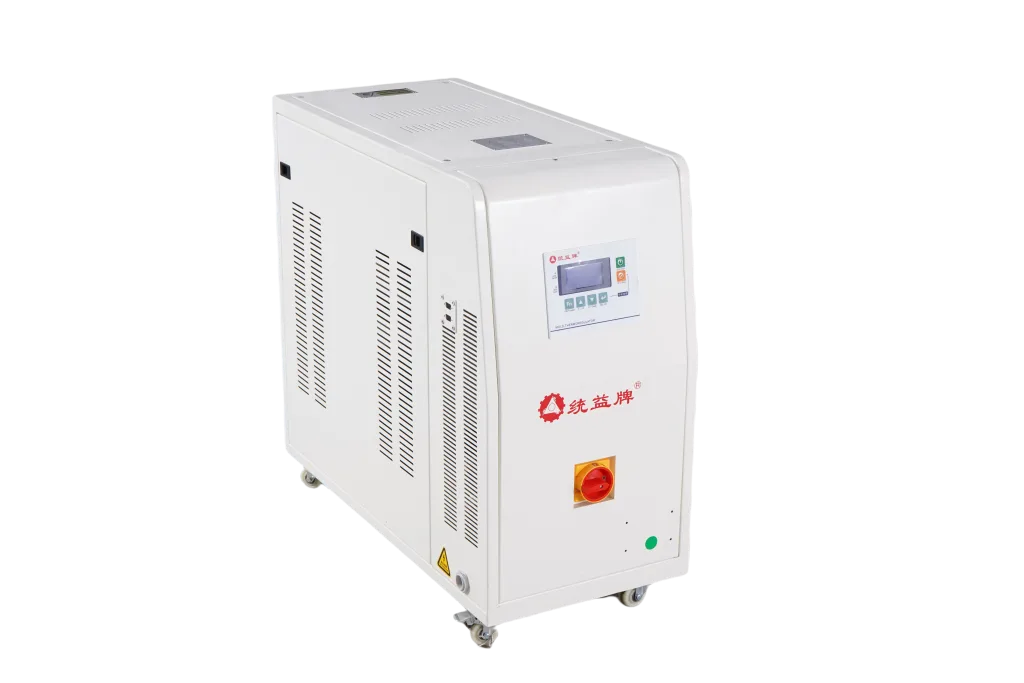

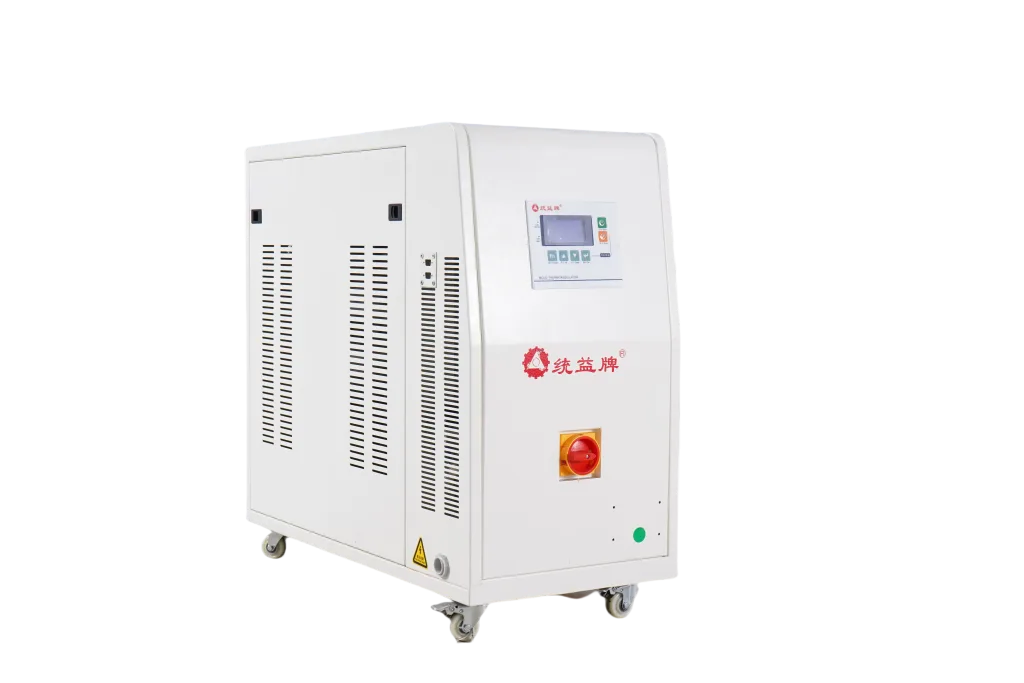

High Temp. Water Temperature Controller Series

Cooling & Heating System Equipment

Model TMW Series

High Temp. Water Temperature Controller Series

High-temperature water mold temperature control up to 160°C with ±0.1°C precision, rapid heating, stable circulation, and reliable safety protection for injection molding applications.

160°C Max. Temperature High-temperature water control for demanding molding processes.
±1°C Temperature Accuracy Precise PID control maintains stable mold temperature.
Fast Heating Response Rapid temperature rise reduces mold warm-up time.
Request a Quote View Product Overview
Max. Temperature
160 °C
Temperature Accuracy
±0.1 °C
Heater Power
9–48 kW
Pump Max. Flow
145–415 L/min

Core Advantages

Higher Efficiency, Better Molding Quality

The TMW Series High Temperature Water Mold Temperature Controller is designed for injection molding processes requiring stable and elevated mold temperatures up to 160°C. The system automatically heats and circulates water to quickly reach the required mold temperature and maintain stable operating conditions throughout production. Precision PID temperature control with accuracy up to ±0.1°C helps improve molding consistency, shorten warm-up time, and enhance product quality. Multiple safety protection functions, high-flow circulation pumps, and durable system construction ensure reliable operation in demanding production environments.

Shorter Warm-Up Time

Rapid heating brings the mold to the required temperature faster, reducing production preparation time.

Stable Mold Temperature

Continuous temperature control keeps the mold stable during production and reduces restart delays.

Improved Product Quality

Consistent mold temperature promotes uniform material flow and helps reduce common molding defects.

Better Dimensional Consistency

Stable thermal conditions help improve molding accuracy and maintain consistent part dimensions.

Key Features

Designed for High-Temperature Operation

  • PID Temperature Control Intelligent PID control provides accurate and stable temperature regulation throughout production.
  • Two-Stage Heating Selectable two-stage heating provides rapid temperature rise while helping optimize energy consumption.
  • High-Flow Water Circulation Powerful circulation pumps provide stable water flow for efficient heat transfer between the unit and mold.
  • Multiple Safety Protections Protection against phase loss, reverse phase, pump overload, overheating, and insufficient medium enhances operational safety.
  • Fault Alarm System Visual indicators and audible alarms provide clear notification of abnormal operating conditions.
  • High-Temperature Water Circuit The water circuit is engineered for reliable operation under elevated temperature and pressure conditions.
High Temp. Water Temperature Controller Series

Technical Specifications

Technical Specifications

Specification TMW-90 TMW-120 TMW-180 TMW-240 TMW-360 TMW-480 TMW-99 TMW-1212 TMW-2424
Pump Power (kW) 0.75 0.75 1.5 1.5 2.2 3.7 0.75/0.75 0.75/0.75 1.5/15
Heater Power 9 12 18 24 36 48 9*2 12*2 24*2
Pump Max. Flow (L/min) 145 145 160 160 310 415 145*2 145*2 160*2
Pump Pressure (MPa) 0.25 0.25 0.27 0.27 0.30 0.35 0.25 0.25 0.30
Inlet & Outlet 3/8" *4 3/8" *4 3/8" *4 1"*1 1-1/2"*1 2"*1 3/8" *4 / 3/8" *4 3/8" *4 /3/8" *4 1"*1 / 1"*1
Dimensions (mm) 660*360*730 660*360*730 800*500*690 800*500*690 950*500*700 1050*580*700 1150*450*1350 1150*450*1350 1150*450*1350
Weight (kg) 60 65 90 110 130 150 200 240 280

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

Operating Workflow

Operating Workflow

1

Water Circulation

The circulation pump continuously delivers water between the temperature controller and the mold.

2

Rapid Heating

The heating system quickly raises the circulating water to the required process temperature.

3

Automatic Temperature Control

The PID controller continuously monitors temperature and automatically regulates heating to maintain the set value.

4

Stable Mold Temperature

Continuous circulation maintains consistent mold temperature throughout the molding cycle.
