Water Type Mold Temperature Controller

Cooling & Heating System Equipment

Model TMC Series

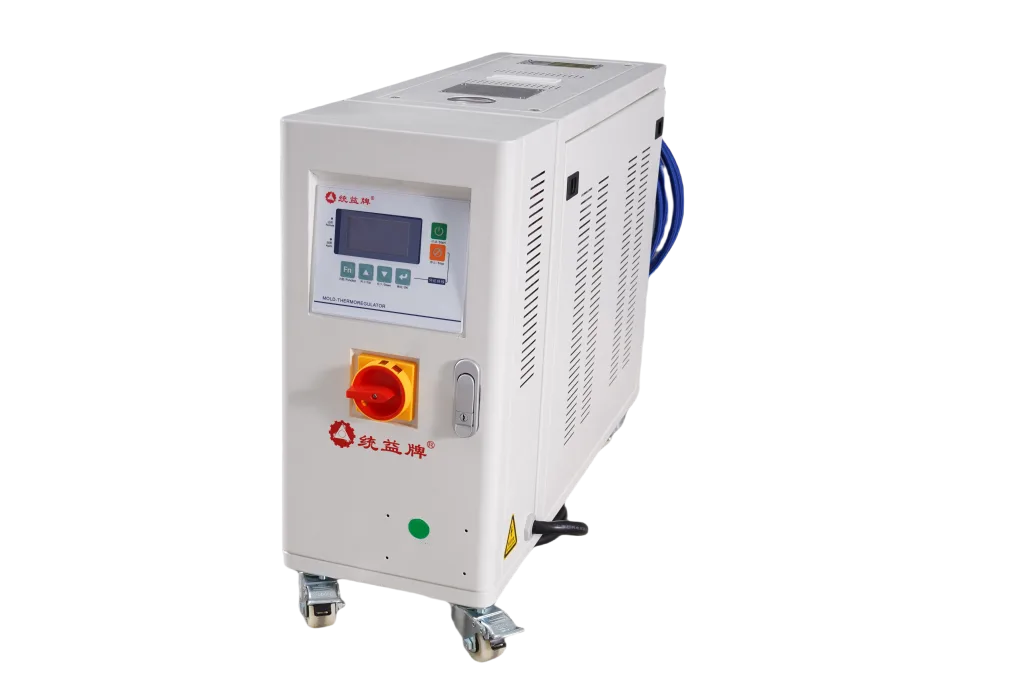

Water Type Mold Temperature Controller

Precise water temperature control up to 120°C with fast heating and cooling, stable performance, and reliable operation for injection molding applications.

120°C Max. Temperature Stable high-temperature water circulation control
±0.1°C Precision Control Accurate PID temperature control for stable production
Fast Heating Rapid temperature response improves production efficiency
Request a Quote View Product Overview
Max. Temperature
120 °C
Temperature Accuracy
±0.1 °C
Heater Power
6–36 kW
Pump Max. Flow
42–310 L/min

Core Advantages

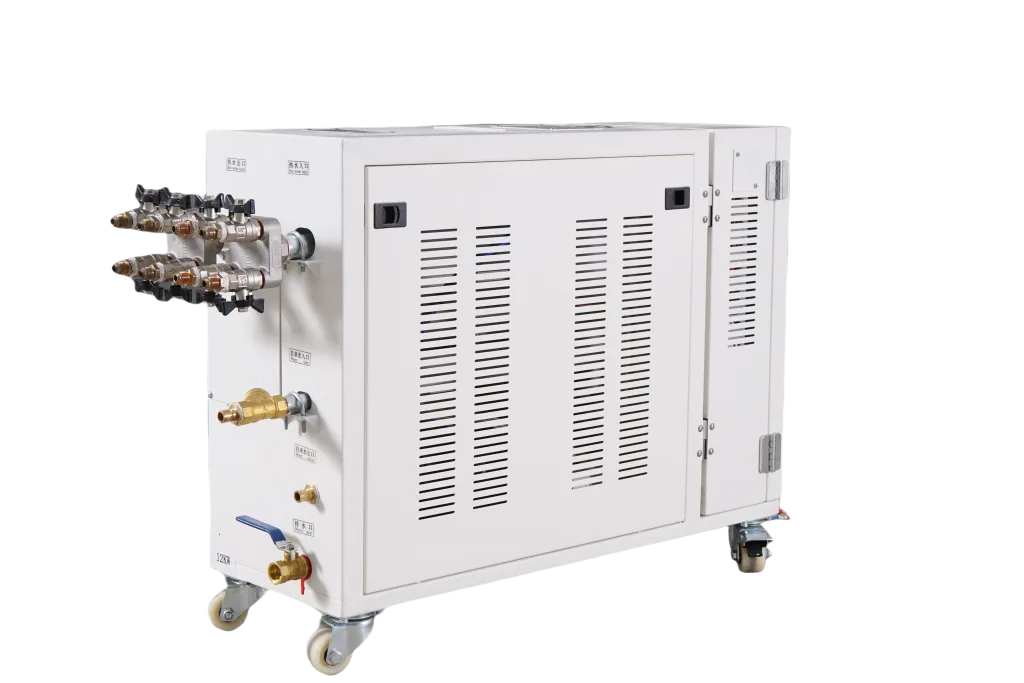

Water Type Mold Temperature Controller

The TMC Series Water Type Mold Temperature Controller is designed to provide precise and stable mold temperature control for injection molding processes. Using water as the heat transfer medium, the system delivers fast heating and cooling response with temperature control accuracy up to ±0.1°C. The unit features dual PID temperature control,304stainless steel piping, multiple safety protection systems, and high-quality components for reliable long-term operation. An RS485 communication interface is also available for integration with injection molding machines and centralized monitoring systems.

Precise & Stable Control

Maintains consistent mold temperature for stable product quality and repeatable production.

Faster Production Cycles

Rapid heating and cooling response helps reduce waiting time and improve production efficiency.

Reliable Operation

Robust construction and multiple safety protections support stable long-term operation.

Easy Automation Integration

RS485 communication enables connection with injection molding machines and centralized control systems.

Key Features

Water Type Mold Temperature Controller

  • Dual PID Control Intelligent dual PID control automatically adjusts heating and cooling for stable operation.
  • 304 Stainless Steel Piping Integrated stainless steel piping provides corrosion resistance, smooth flow, and long service life.
  • Isolated Electrical Cabinet Separated electrical and heating sections reduce heat exposure and help protect electrical components.
  • Weekly Timer Function Programmable automatic start and stop scheduling supports efficient production planning.
  • Comprehensive Safety System Built-in protection for overheating, pump overload, low water level, and abnormal operating conditions.
Water Type Mold Temperature Controller

Technical Specifications

Technical Specifications

Specification TMC-60W TMC-90W TMC-120W TMC-180W TMC-240W TMC-360W
Medium Clean Water Clean Water Clean Water Clean Water Clean Water Clean Water
Max. Temperature 120°C 120°C 120°C 120°C 120°C 120°C
Min. Temperature Cooling Water Temperature +5-30°C Cooling Water Temperature +5-30°C Cooling Water Temperature +5-30°C Cooling Water Temperature +5-30°C Cooling Water Temperature +5-30°C Cooling Water Temperature +5-30°C
Cooling Method Direct Direct Direct Direct Direct Direct
Heater Power (KW) 6 9 12 18 24 36
Pump Power (KW) 0.37 0.75 0.75 1.5 1.5 2.2
Pump Max. Flow (L/MIN) 42 60 60 165 165 310
Max. Pressure (MPA) 0.35 0.4 0.4 0.25 0.25 0.3
Temperature Probe K type Probe Thermocouple K type Probe Thermocouple K type Probe Thermocouple K type Probe Thermocouple K type Probe Thermocouple K type Probe Thermocouple
Water Outlet Pipe Dia. (MM) 15 15 15 15 15 15
Medium Inlet/Outlet Type 2in2out 4in4out 4in4out 6in6out 6in6out 8in8out
Medium Inlet/Outlet Dia. (INCH) 3/8 3/8 3/8 1 1 1.2
Machine Dimension (LWH/MM) 900*27*600 900*27*600 900*27*600 975*400*720 975*400*850 975*400*850

Swipe horizontally to compare all models.

Specifications are subject to change without notice. Contact us for the latest project data.

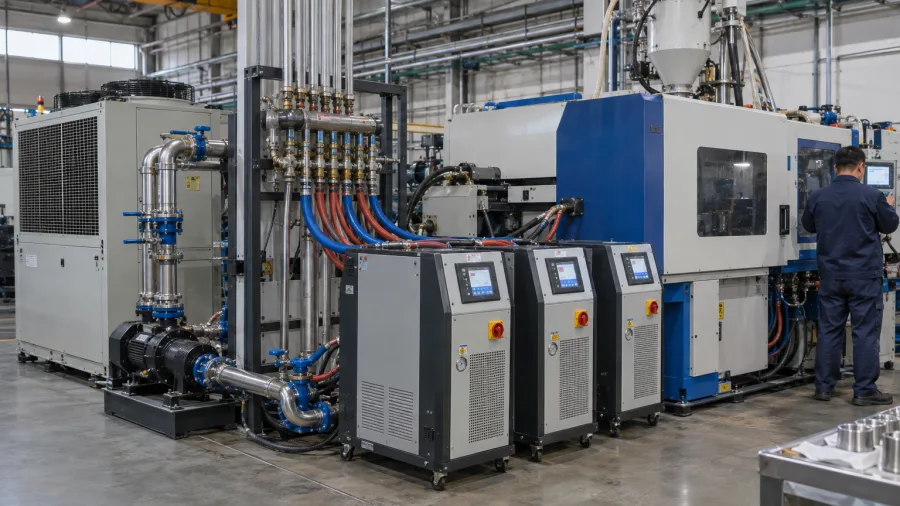

Operating Workflow

Operating Workflow

1

Water Supply

Cooling water enters the system and prepares the circulation loop for operation.

2

Heating & Circulation

The pump circulates water through the heater and mold circuit to quickly reach the target temperature.

3

Automatic Temperature Control

The controller continuously monitors temperature and automatically adjusts heating or cooling as required.

4

Continuous Recirculation

Conditioned water continuously circulates between the controller and mold to maintain a consistent process temperature.
